Horizontal Sliding Doors

Freezer-type

Our insulated sliding doors are incredibly versatile and suitable for a large range of different applications, from cold stores and dry stores, to blast freezers and ambient processing areas. They are designed to operate within multiple work environments; including dairy, poultry and meat processing plants, fruit and vegetable stores, medicine production facilities, and logistics and warehouse storages. For projects with strict hygiene standards and sensitive environments, we are able to provide stainless steel options for our door leaves, profiles, rails, handles and hinges. Depending on the level of traffic in a specific area, we can provide either a manually or electrically-operated door to suit your requirements. Additionally, we can supply various accessories depending on the type of operation and access needed, such as pull cords, motion sensors, induction loops and more. Alternatively, if required, you can install and link your own access system to our electrical doors using various potential free contacts available.

Options:

  • Key locks with internal safety release
  • Threshold heater (freezer door only)
  • Choice of colours - subject to availability
  • Crash protection bumper (outer door leaf only)
  • Various potential free contacts
  • Vision panel (depending on size of door)
Seal
Whole perimeter is sealed with rubber profiles.
Door leaf color
Light Grey RAL 9002.
Surface texture
Anodised aluminium profiles with a complete thermal break fitting the wall.
Operation
Manual or Electrical (Power supply 230 V, single phase, 50 Hz, 20 Amp).
Openers
Available inside and outside.
Frame heating
Included in three sides of the door frame (Freezer only).

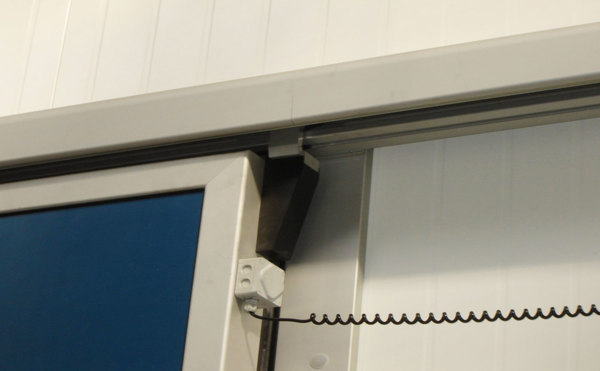

Rail system
Anodised aluminium drop/lift rail system, type SRA with dust cap.
R-value panels
Approximately 6.67 m2K/W (Freezer), Approximately 4.76 m2K/W (Chiller).
Construction
Door leaf constructed with a fire-resistant Polyisocyanurate (PIR) insulation material with a foam density of 40 kg/m3. Both sides are covered with 0.5 mm PPGI steel flat sheet with a polyester coating.
Thickness door leaf
140 mm (Freezer), 100 mm (Chiller).
Door frame
Anodised aluminium profiles with a complete thermal break fitting the wall.
Wall frame
Anodised aluminium profiles with thermal breaks to prevent heat bridges.
Additional options
SS bumper, SS finish of the clear opening, SS rain cap, key locks, electric system as per CE standards threshold heater. SS door leaf sheet, door profiles and wall frames.
Product Sheets
Technical specifications
